Setup a Grafana-SQLite visualization stack using Podman

Objective 🔍

The objective of this tutorial is to show how to setup a Grafana dashboard that plots time-series data retrieved from an SQLite database, using podman containers.

Description 📖

If you have a WebPanel with codesys, or some other software that stores time-series data gathered from different input devices inside an SQLite database, and you need to visualize it, this tutorial will guide you throughout every step. As a bonus, this tutorial comes with a custom Python podman image used to create and periodically write an SQLite database with random data.

Prerequisites 🛠️

Steps 🪜

  1. Connect to the device via SSH using the user account:

    ssh user@<DEVICE_IP>
    2. Navigate to the persistent folder /data/user:

    cd /data/user

  2. Create a dedicated folder for the tutorial:

    mkdir grafana-sqlite-visualization-stack
cd grafana-sqlite-visualization-stack

  3. Create a dedicated folder to have persisent storage for Grafana, and a podman folder to keep your configuration files:

    mkdir grafana-data
mkdir podman

  4. Run the container:

    • If you only need the Grafana container and you already have a working SQLite database inside a SQLITE_FILE_FOLDER , just run:

      podman run --userns=keep-id -u $(id -u):$(id -g) -v $(pwd)/grafana-data:/var/lib/grafana -v <SQLITE_FILE_FOLDER>:/db -p 3000:3000 -e GF_PLUGINS_PREINSTALL="frser-sqlite-datasource" grafana/grafana-enterprise:12.0.1

      Note: use --userns=keep-id to make sure that user (your current user) is correctly mapped as container user so that there aren't any RXW permissions. Then, use -u $(id -u):$(id -g) to actually use your mapped user as container user

    • If you need both Grafana and an SQLite database, along with the Python container for simulating data, you will use podman-compose.

      1. Create an additional folder to store the SQLite database:

        mkdir sqlite-data

      2. Create a write_sample.py script to create and write inside the SQLite database:

        import sqlite3
import time
import random
import os

DB_PATH = "sqlite-data/sample.db"
MAX_ROWS = 100
DB_TABLE_DEFAULT = "table_sample"
VALUE_MIN = 0
VALUE_MAX = 10

# Ensure the database and table exist
def init_db():
    conn = sqlite3.connect(DB_PATH)
    cursor = conn.cursor()
    cursor.execute(f'''
        CREATE TABLE IF NOT EXISTS {DB_TABLE_DEFAULT} (
            timestamp INTEGER NOT NULL,
            value REAL NOT NULL
        )
    ''')
    conn.commit()
    conn.close()

# Insert a new row every second
def insert_loop():
    conn = sqlite3.connect(DB_PATH)
    cursor = conn.cursor()
    try:
        while True:
            # Check current number of rows
            cursor.execute(f'SELECT COUNT(*) FROM {DB_TABLE_DEFAULT}')
            row_count = cursor.fetchone()[0]

            # Delete the oldest row if over the limit
            if row_count >= MAX_ROWS:
                cursor.execute(f'''
                    DELETE FROM {DB_TABLE_DEFAULT}
                    WHERE timestamp = (
                        SELECT timestamp FROM {DB_TABLE_DEFAULT}
                        ORDER BY timestamp ASC
                        LIMIT 1
                    )
                ''')

            # Insert new row
            ts = int(time.time())
            val = round(random.uniform(VALUE_MIN, VALUE_MAX), 3)
            cursor.execute(f'INSERT INTO {DB_TABLE_DEFAULT} (timestamp, value) VALUES (?, ?)', (ts, val))
            conn.commit()
            print(f"Inserted: {ts}, {val}")
            time.sleep(1)
    except KeyboardInterrupt:
        print("Stopped by user.")
    finally:
        conn.close()

if __name__ == "__main__":
    init_db()
    insert_loop()

      3. Enter the podman folder:

        cd podman

      4. Create a sqlite-data-generator.Dockerfile file to run the SQLite data generator:

        FROM docker.io/python:3.10-slim

WORKDIR /workspace

COPY write_sample.py .

CMD [ "python" ,"./write_sample.py"]

      5. Create a podman-compose.yml file:

        services:
  grafana:
    image: docker.io/grafana/grafana-enterprise:12.0.1
    container_name: grafana-example
    restart: always
    environment:
      - GF_PLUGINS_PREINSTALL="frser-sqlite-datasource"
    userns_mode: keep-id
    user: ${MY_UID}:${MY_GID}
    volumes:
      - ${ROOT_DIR}/grafana-data:/var/lib/grafana
      - ${ROOT_DIR}/sqlite-data:/db
    depends_on:
      - sqlite-data-generator
    network_mode: host

  sqlite-data-generator:
    build:
      context: ..
      dockerfile: podman/sqlite-data-generator.Dockerfile
    image: sqlite-data-generator-example
    container_name: sqlite-data-generator-example
    restart: always
    userns_mode: keep-id
    user: ${MY_UID}:${MY_GID}
    volumes:
      - ${ROOT_DIR}/sqlite-data:/workspace/sqlite-data
    network_mode: host

      6. Build and run the compose:

        MY_UID=$(id -u) MY_GID=$(id -g) ROOT_DIR=$(pwd) podman-compose -f podman/podman-compose.yml up --build

        Note: in this case, the --userns and the user mapping are performed internally in the podman-compose.yml, and you just need to pass your UID and the GID

        Note 2: make sure your container has access to internet so that grafana can download its plugins. This is not trivial since some firewall rules for Docker/Podman must be set. For the sake of ease and for development usage, add --network=host to the command above

  5. Access the Grafana dashboard by navigating to localhost:3000 if you are physically interacting with your target device, or to <DEVICE_IP>:3000 if you have remote access to your target device. You should see the default login page of Grafana.

  6. Access using:

    • user: admin
    • password: admin

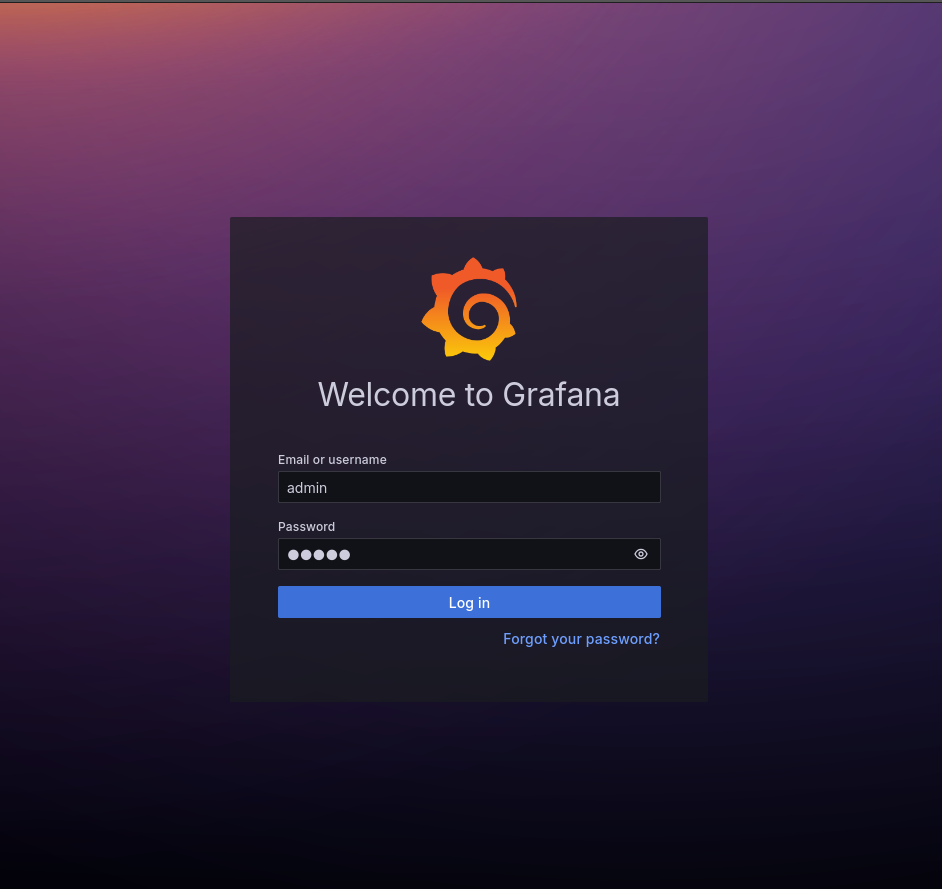

    then you can optionally modify the default password (suggested). Login

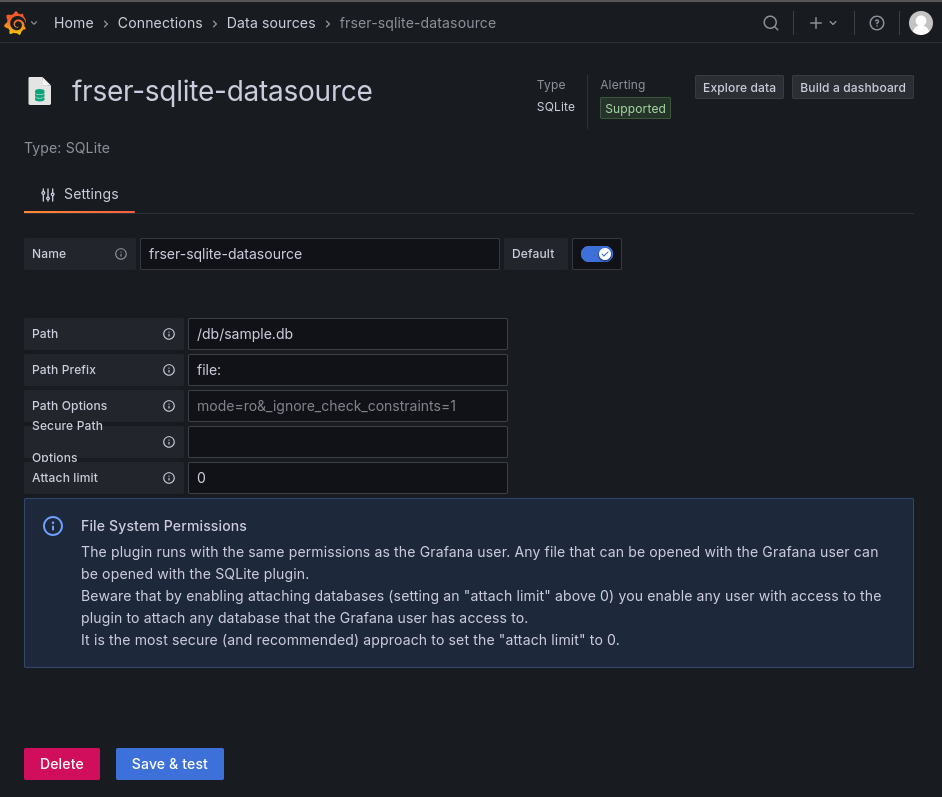

  7. In order to plot data from the SQLite database, you first need to configure the data-source for SQLite. Go to Home->Connections->Data sources->Add data source, look for SQLite (the plugin installed using GF_PLUGINS_PREINSTALL), select it and use /db/sample.db as path for the database file. You can leave the rest of the configuration as it is, then press "Save and test". Add data source

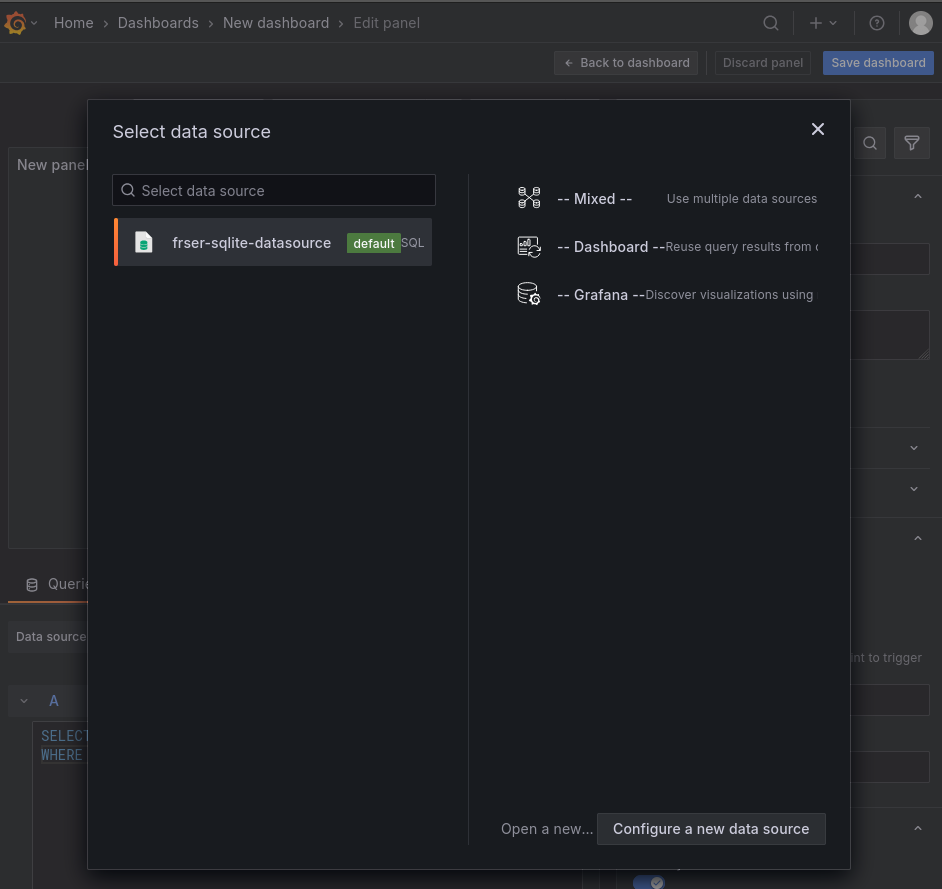

  8. Go to Home->Dashboards and create a new dashboard. Select the previous configured data-source as data source of the dashboard and create the dashboard Add dashboard

    Then, scroll down to the query input file and write:

    SELECT timestamp as ts, value
FROM table_sample

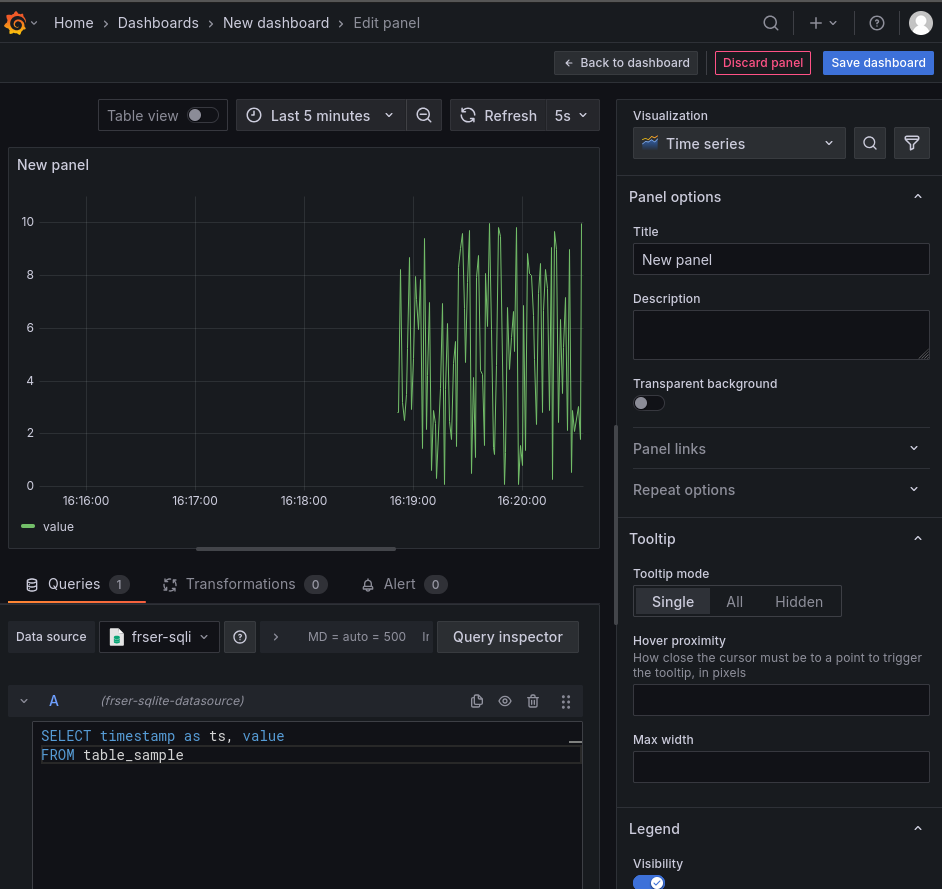

    save the query (or click outside the input text of the query) and you should see a plot of the default panel. Plot data
