Create your own Node-RED Image with Podman

Objective 🔍

Run a Podman container with:

Pre-installed Node-RED
Configured dashboard, serial-port, and modbus modules
Access to /dev/ttyCOM1 and /dev/ttyCOM2 devices (for Modbus)
Persistent volume to save Node-RED flows and configurations

Description 📖

If you need to configure your WebPanel/TouchController to connect different devices, services, or bits of logic and you don’t feel like writing a bunch of boilerplate code, you should use Node-RED. In this tutorial, you'll be guided into every step to have a containerized instance of NodeRED, configured with some basic peripherals.

Prerequisites 🛠️

A WebPanel (WP) or TouchController (TC) device with a WebVisu license.
Basic knowledge of Linux commands (optional if you use GUIs)
Basic knowledge of podman and containers
Basic knowledge of Node-RED framework

Steps 🪜

Note: if you have planned to use physical hardware peripherals in your Node-RED container, you will need to "manually" create your container using a podman-compose.yml file, as explained in the section 2

Connect to the Device and Prepare the Working Directory
- If you are using a Linux shell:
  1. Connect to the device via SSH using the user account:
```
ssh user@<DEVICE_IP>
```
  2. Navigate to the persistent folder /data/user:
```
cd /data/user
```
  3. Create a dedicated folder for the image and project:
```
mkdir -p node-red-podman/data && cd node-red-podman
```

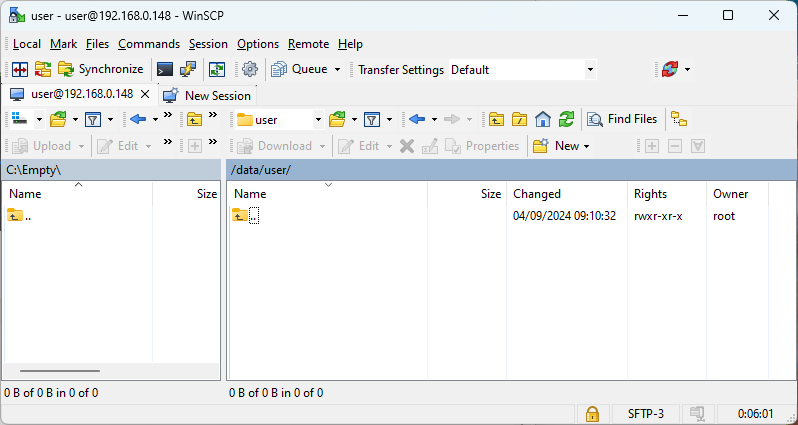

- If you are using WinSCP (on Windows)
  1. Connect to the device via SSH using the user account and navigate to /data/user:

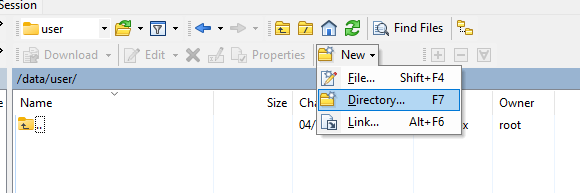

  2. Navigate to the New menu and choose the Directory option

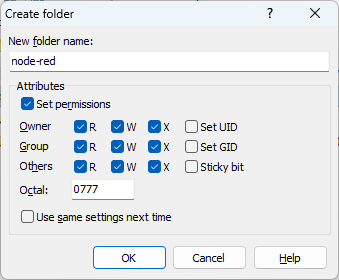

  3. Create the node-red-podman directory and give it RWX permission for owner, group, and other users

    Note: you need to use these set of permissions only if you are going to run the container using Cockpit: this is due to the lack of options for the podman run command. If you are going to run the container via Linux command-line, you can give the created folder ONLY RWX permissions for the owner (first row of the permissions table), and leave the other rows empty, to enhance the security. This last is also the suggested way to run the container ---
Create the podman image
- If you are going for a manual image creation, you can customize your image with every module you need, without manually install it later on the Node-RED GUI. This is the most portable and recommended way.

  Note: follow the steps below only if you are going to run your container using command-line
  1. Create a file named node-red.Dockerfile with the following content:
```
# Use Node-RED as base
FROM docker.io/nodered/node-red:3.1.15

# Install additional modules: dashboard, serial-port, modbus client/server
RUN npm install node-red-node-serialport node-red-dashboard node-red-contrib-modbus node-red-contrib-modbus-flex-server && \
     npm cache clean --force

# Expose port 1880 for Node-RED access
EXPOSE 1880
```
  2. Create a podman-compose file named node-red-compose.yml with the following content:
```
services:
  nodered:
    # tell podman-compose to build the previous custom node-red image
    build:
      context: .
      dockerfile: node-red.Dockerfile
    image: node-red-custom
    container_name: NodeREDContainer
    restart: always
    group_add:
      - keep-groups
    userns_mode: keep-id # map my host user to the user namespace of the container
    user: ${MY_UID}:${MY_GID}
    ports:
      - 1880:1880 # map container port 1880 to host port 1880
    devices:
      - /dev/ttyCOM1:/dev/ttyCOM1 # map devices
      - /dev/ttyCOM2:/dev/ttyCOM2
    volumes:
      - /data/user/node-red-podman/data:/data  # Persistent volume for flows and configurations
```
    The following table shows how serial ports (RS485) are linked to /dev/ttyCOM* based on the WP/TC model:

    Device Serial port P2 P3 P4

    /dev/ttyCOM1 Port 1(RS485) /dev/ttyS5 dev/ttyS2 /dev/ttyS5

    /dev/ttyCOM2 Port 2(RS485) /dev/ttyS0 dev/ttyS0 /dev/ttyS2
- If you are not familiar with Linux shells (or you don't need to map hardware peripherals to your container), you can do everything from the Cockpit GUI.

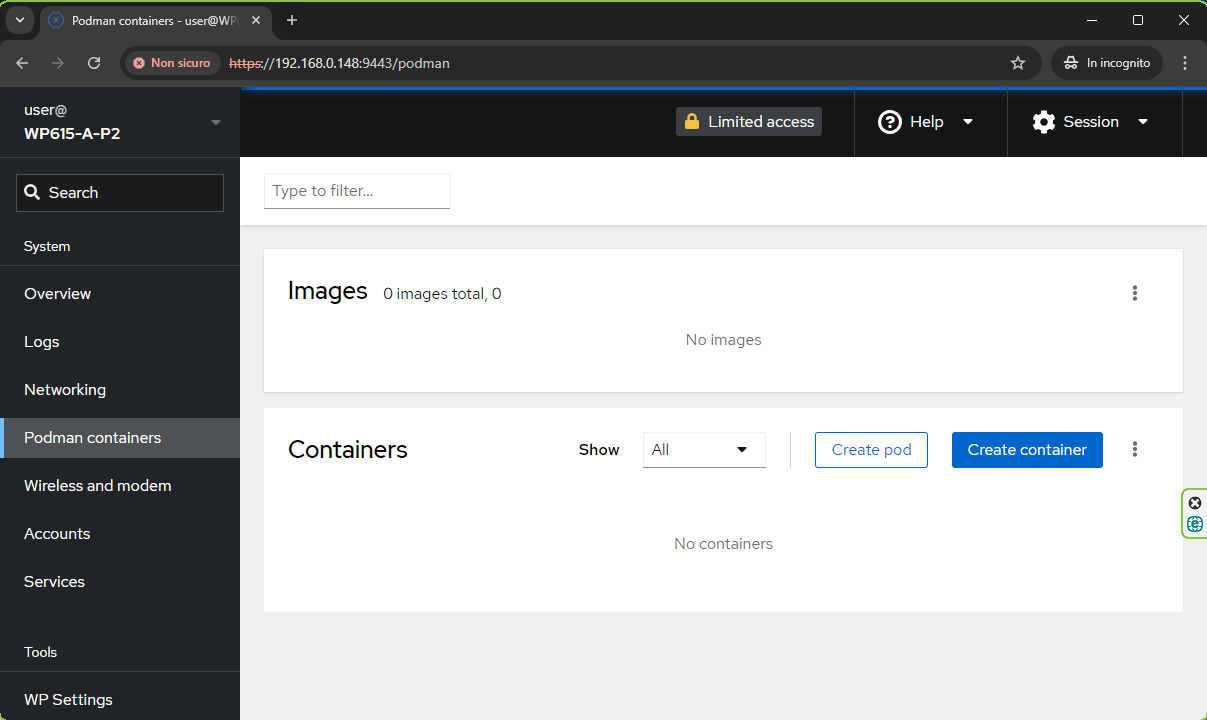

  1. Log-in into Cockpit from you WP, TC or directly from a PC through a browser at http://<DEVICE_IP>:9443
  2. Navigate to the Podman containers tab in the side-menu.

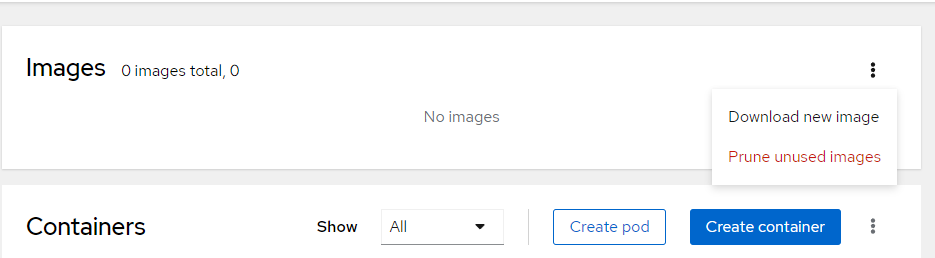

  3. Choose "Download new image" on the kebab menu (3 vertical points) in the Images section

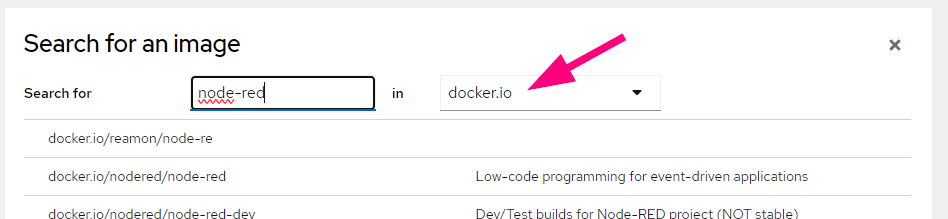

  4. Select the docker.io registry and type node-red inside the search input text

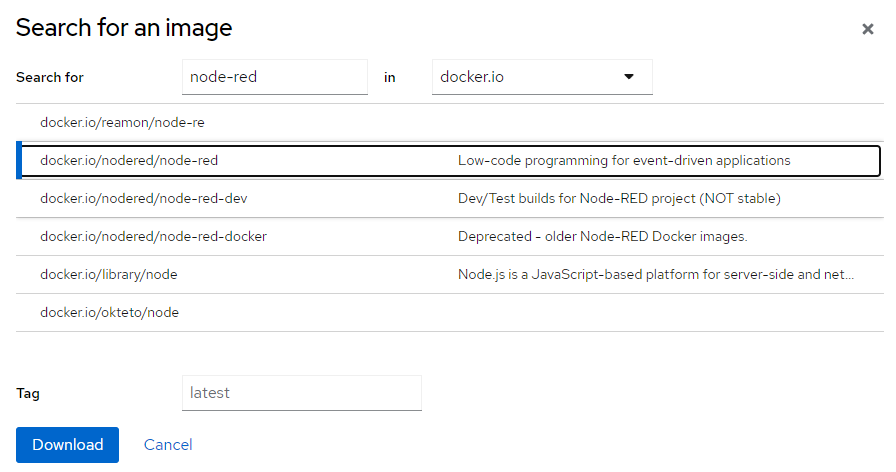

  5. Select the docker.io/nodered/node-red image and press the "Download" button

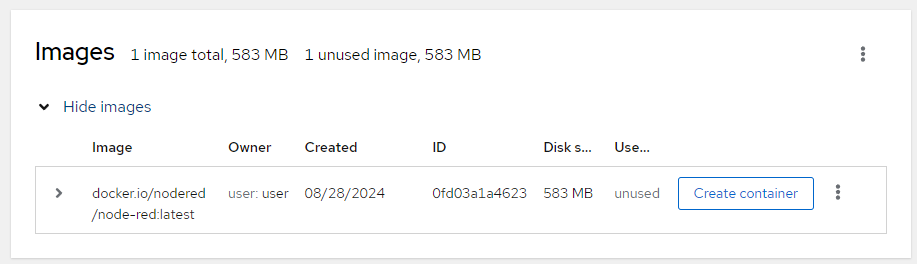

  6. At the end of the download, you will be able to see the downloaded image inside the Images section
Create and start the Container
- if you have followed the manual setup with podman-compose, you only need to run:
```
MY_UID=$(id -u) MY_GID=$(id -g) podman-compose -f node-red-compose.yml up --build
```
  Note: MY_UID and MY_GID are set to user ID and group ID of your current user, which should be user. This way, everything written by the container user will have the same ownership of your host user.

  To make sure the container is running, run:
```
podman ps
```
  The output should be something like this:
```
CONTAINER ID    IMAGE   COMMAND CREATED STATUS  PORTS   NAMES
004d1d95bbd0    localhost/node-red-custom:latest    2 minutes ago   Up 2 minutes    0.0.0.0:1880->1880/tcp  NodeREDContainer
```
  In order to make sure that the container is started at every boot of the machine, run:
```
systemctl --user enable podman-restart.service
```
- If you want to use Cockpit to manage the container:

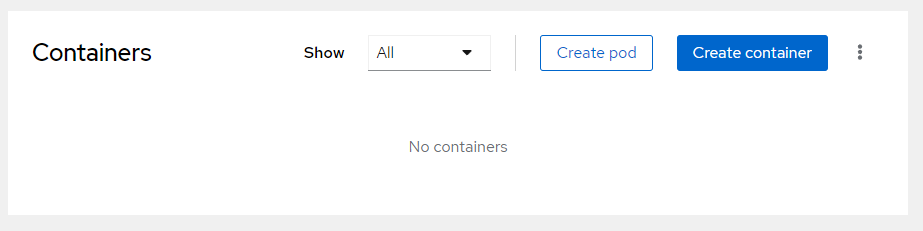

  1. On the Containers section, press the "Create container" button. A menu will appear.

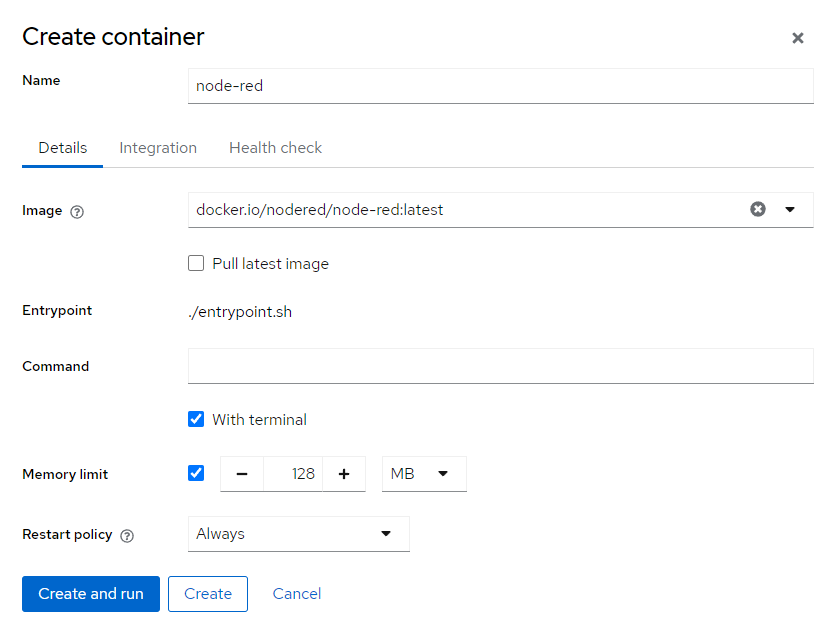

  2. Fill the Details section as shown below:

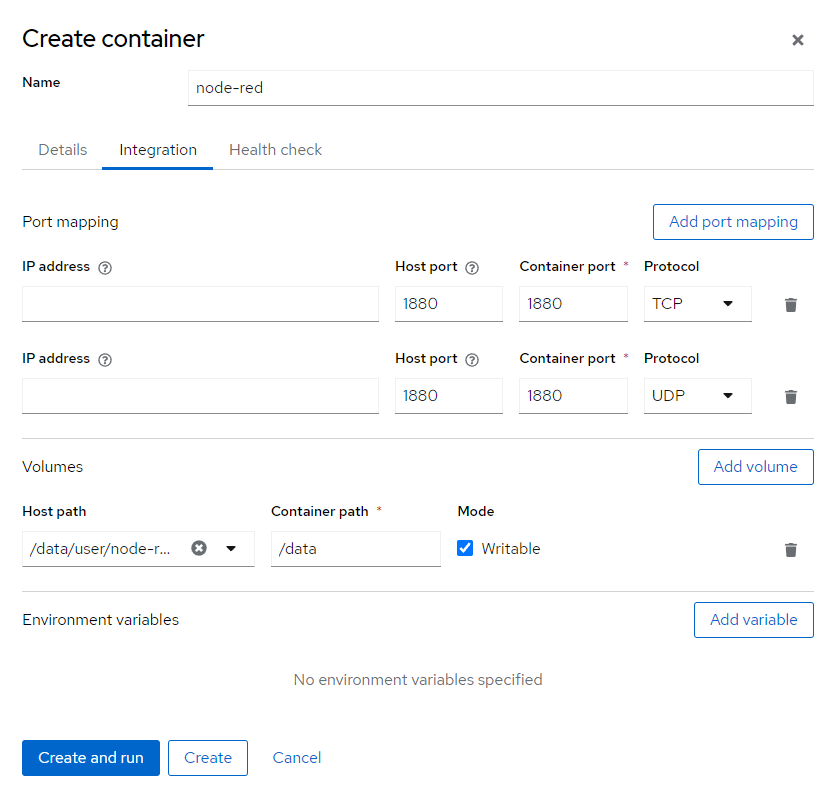

  3. Navigate to the Integration tab and fill it as shown below:

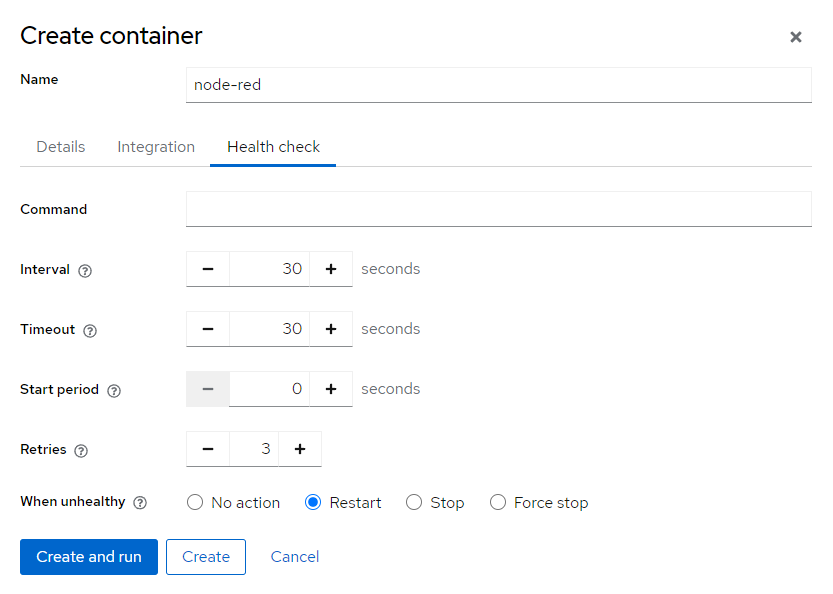

  4. Navigate to the Health check tab and fill it as shown below:

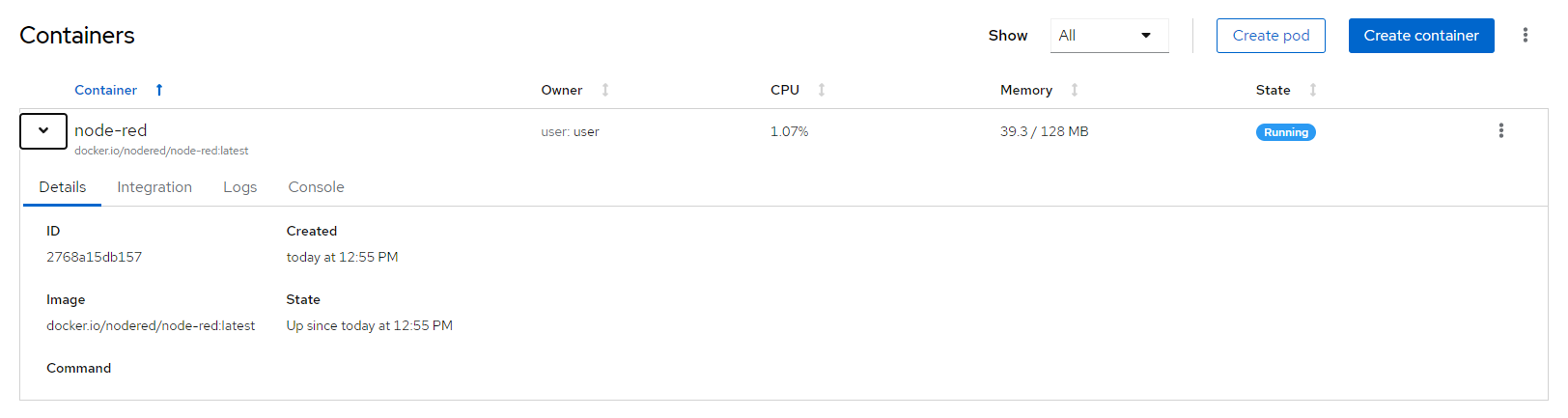

  5. Press the "Create and run" button. After the creation, you will be able to see the created container inside the Container section, with a "Running" value on the State column.

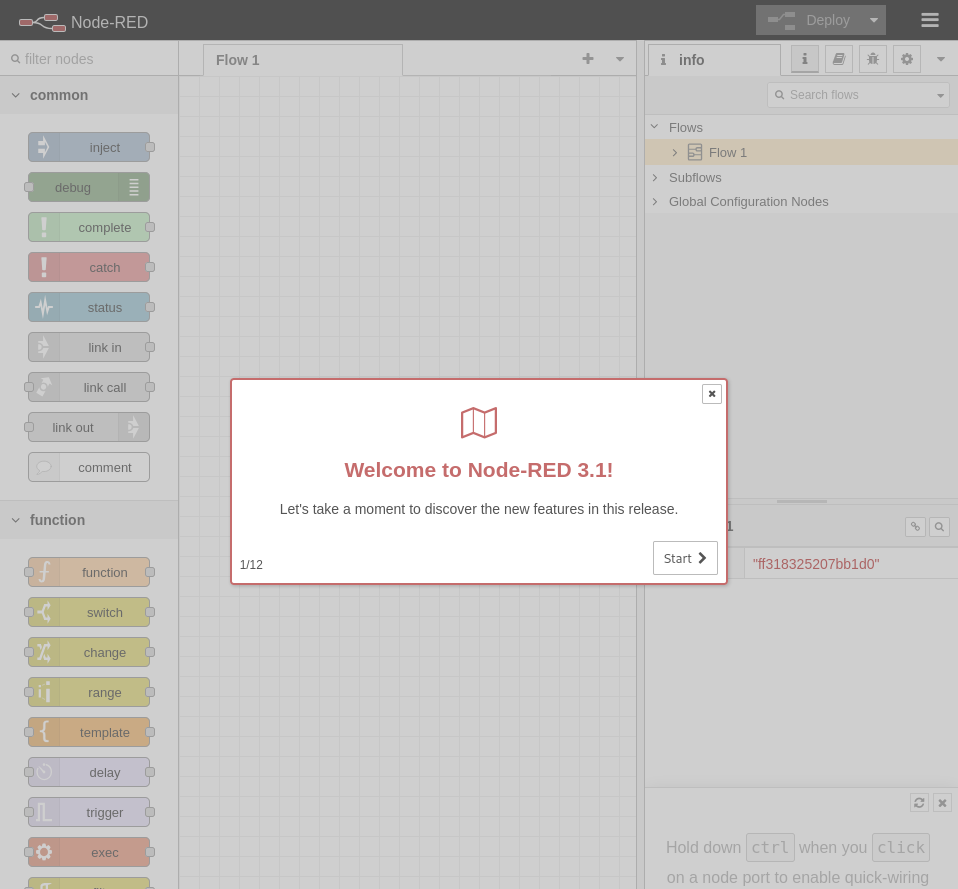

Open a browser and navigate to http://<DEVICE_IP>:1880, which is the default port for NodeRED.

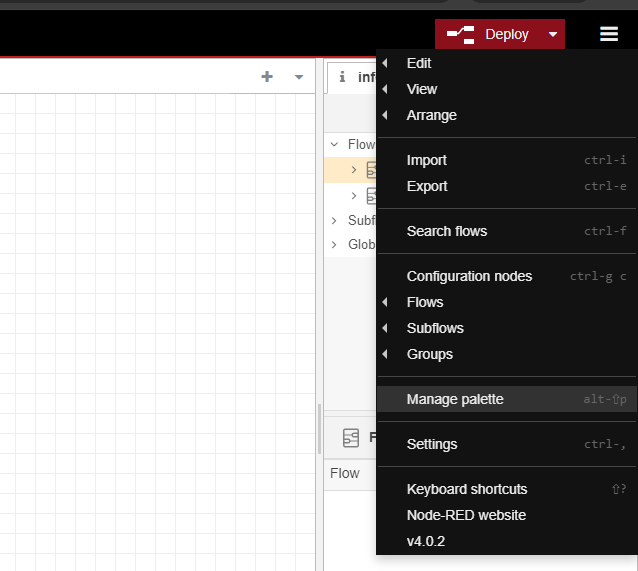

Go to the Manage palette menu in Node-RED by pressing the hamburger menu icon on the top right

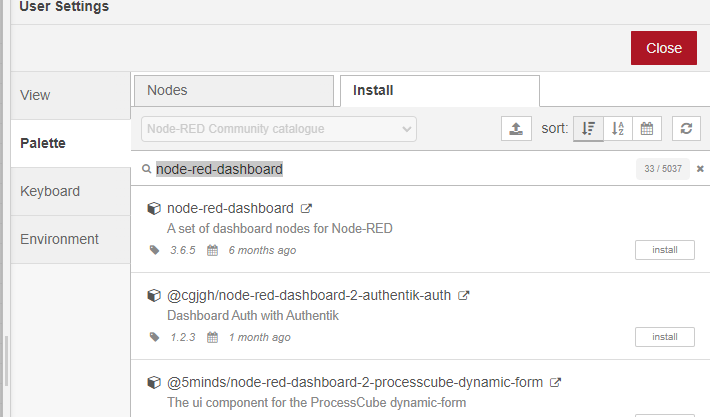

If you have followed the Cockpit guide, you will need to manually install the dashboard and the modbus module otherwise go directly to section 4.3. Type node-red-dashboard and press the "Install" button to install the module. Do the same thing with node-red-contrib-modbus and node-red-contrib-serial-port

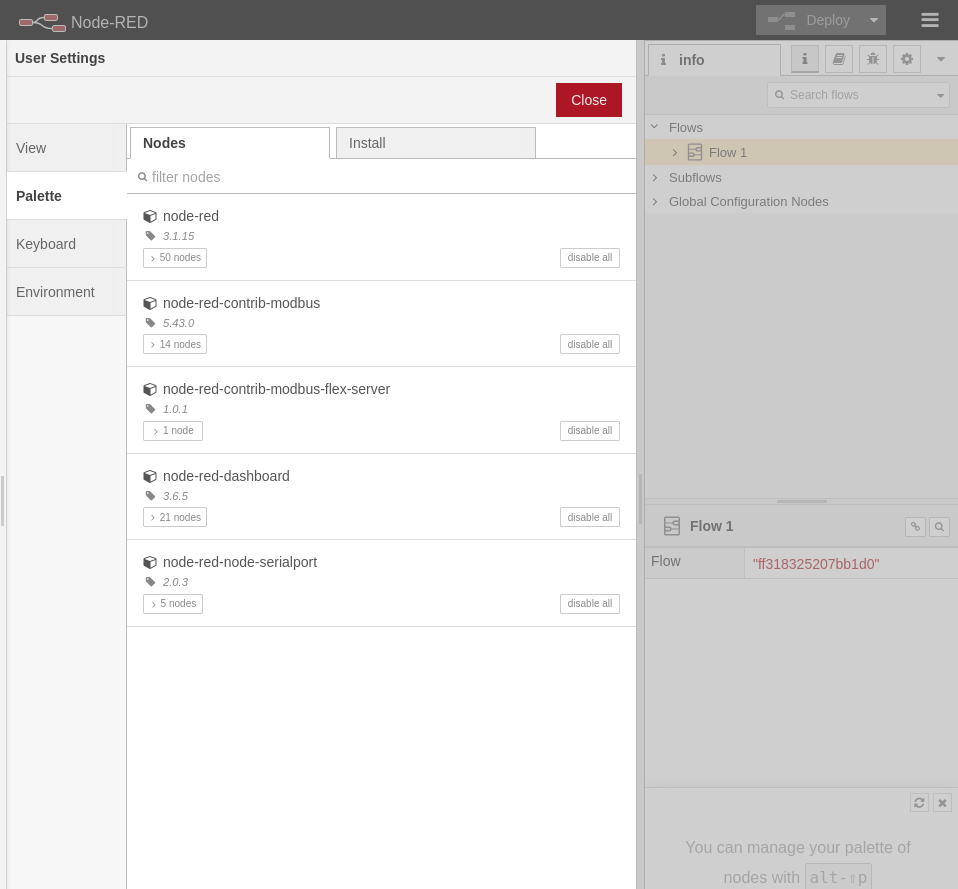

Check that the modules are installed.

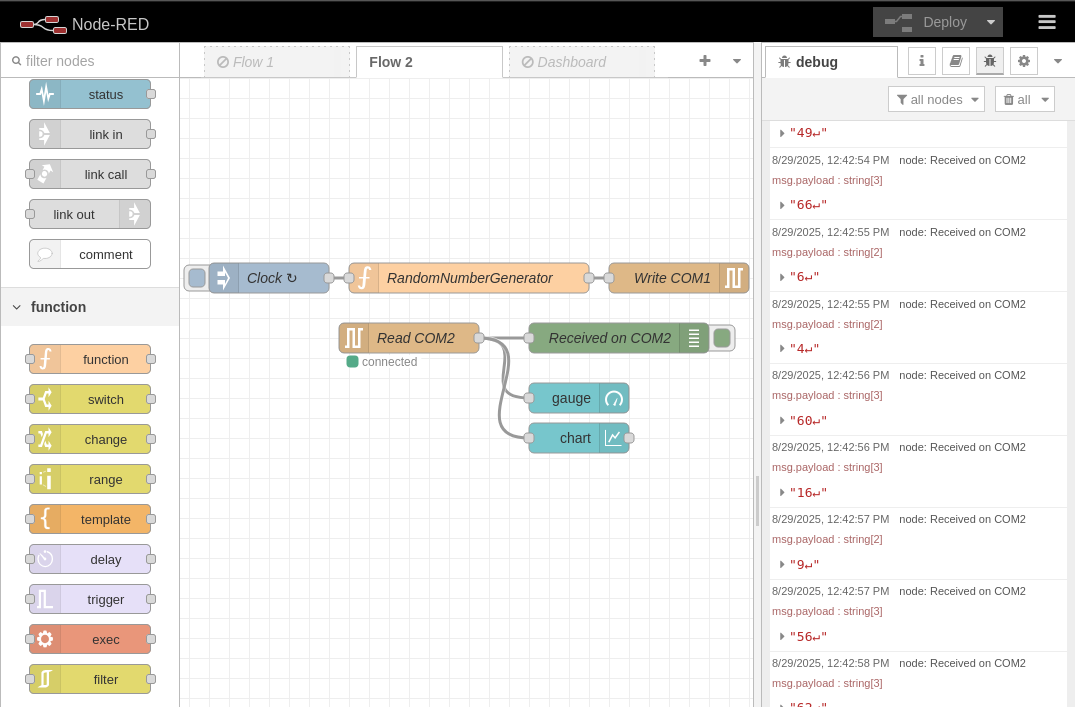

In order to make sure everything works correctly, the following flow has been provided. It will generate a workspace where the 2 serial ports (/dev/ttyCOM1 and /dev/ttyCOM2) are connected in loopback. A random values generator periodically writes to /dev/ttyCOM1 and a gauge and a time plot shows data that is coming from /dev/ttyCOM2. If everything is set up correctly, you should see data printed in the debug window, and charts is the dashboard moving every second.

[
    {
        "id": "d97e65e44eec16d0",
        "type": "tab",
        "label": "Flow 2",
        "disabled": false,
        "info": "",
        "env": []
    },
    {
        "id": "serial-in2",
        "type": "serial in",
        "z": "d97e65e44eec16d0",
        "name": "Read COM2",
        "serial": "serial-com2",
        "x": 260,
        "y": 260,
        "wires": [
            [
                "debug1",
                "50103a7801e594b3",
                "b6470a2fbd45a5c6"
            ]
        ]
    },
    {
        "id": "debug1",
        "type": "debug",
        "z": "d97e65e44eec16d0",
        "name": "Received on COM2",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "payload",
        "targetType": "msg",
        "statusVal": "",
        "statusType": "auto",
        "x": 470,
        "y": 260,
        "wires": []
    },
    {
        "id": "serial-out1",
        "type": "serial out",
        "z": "d97e65e44eec16d0",
        "name": "Write COM1",
        "serial": "serial-com1",
        "x": 530,
        "y": 200,
        "wires": []
    },
    {
        "id": "50103a7801e594b3",
        "type": "ui_gauge",
        "z": "d97e65e44eec16d0",
        "name": "",
        "group": "dd4567b9.6a4c18",
        "order": 3,
        "width": 0,
        "height": 0,
        "gtype": "gage",
        "title": "gauge",
        "label": "units",
        "format": "{{value}}",
        "min": "0",
        "max": "100",
        "colors": [
            "#00b500",
            "#e6e600",
            "#ca3838"
        ],
        "seg1": "",
        "seg2": "",
        "diff": false,
        "className": "",
        "x": 430,
        "y": 320,
        "wires": []
    },
    {
        "id": "b6470a2fbd45a5c6",
        "type": "ui_chart",
        "z": "d97e65e44eec16d0",
        "name": "",
        "group": "dd4567b9.6a4c18",
        "order": 4,
        "width": 0,
        "height": 0,
        "label": "chart",
        "chartType": "line",
        "legend": "false",
        "xformat": "HH:mm:ss",
        "interpolate": "linear",
        "nodata": "",
        "dot": false,
        "ymin": "",
        "ymax": "",
        "removeOlder": 1,
        "removeOlderPoints": "",
        "removeOlderUnit": "60",
        "cutout": 0,
        "useOneColor": false,
        "useUTC": false,
        "colors": [
            "#1f77b4",
            "#aec7e8",
            "#ff7f0e",
            "#2ca02c",
            "#98df8a",
            "#d62728",
            "#ff9896",
            "#9467bd",
            "#c5b0d5"
        ],
        "outputs": 1,
        "useDifferentColor": false,
        "className": "",
        "x": 430,
        "y": 360,
        "wires": [
            []
        ]
    },
    {
        "id": "inject1",
        "type": "inject",
        "z": "d97e65e44eec16d0",
        "name": "Clock",
        "props": [
            {
                "p": "payload"
            }
        ],
        "repeat": "0.5",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 120,
        "y": 200,
        "wires": [
            [
                "7881fa133223c1b1"
            ]
        ]
    },
    {
        "id": "7881fa133223c1b1",
        "type": "function",
        "z": "d97e65e44eec16d0",
        "name": "RandomNumberGenerator",
        "func": "msg.payload = Math.floor(Math.random() * 100);\nreturn msg;",
        "outputs": 1,
        "timeout": 0,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 320,
        "y": 200,
        "wires": [
            [
                "serial-out1"
            ]
        ]
    },
    {
        "id": "serial-com2",
        "type": "serial-port",
        "name": "COM2",
        "serialport": "/dev/ttyCOM2",
        "serialbaud": "9600",
        "databits": "8",
        "parity": "none",
        "stopbits": "1",
        "waitfor": "",
        "newline": "\\n",
        "bin": "false",
        "out": "char",
        "addchar": "",
        "responsetimeout": "10000"
    },
    {
        "id": "serial-com1",
        "type": "serial-port",
        "name": "COM1",
        "serialport": "/dev/ttyCOM1",
        "serialbaud": "9600",
        "databits": "8",
        "parity": "none",
        "stopbits": "1",
        "waitfor": "",
        "newline": "\\n",
        "bin": "false",
        "out": "char",
        "addchar": "\\n",
        "responsetimeout": "10000"
    },
    {
        "id": "dd4567b9.6a4c18",
        "type": "ui_group",
        "name": "Random Data",
        "tab": "fe9b4293.8df8e",
        "order": 1,
        "disp": true,
        "width": "12",
        "collapse": false
    },
    {
        "id": "fe9b4293.8df8e",
        "type": "ui_tab",
        "name": "Main Dashboard",
        "icon": "dashboard",
        "order": 1,
        "disabled": false,
        "hidden": false
    }
]

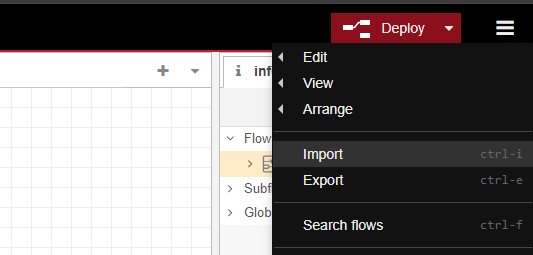

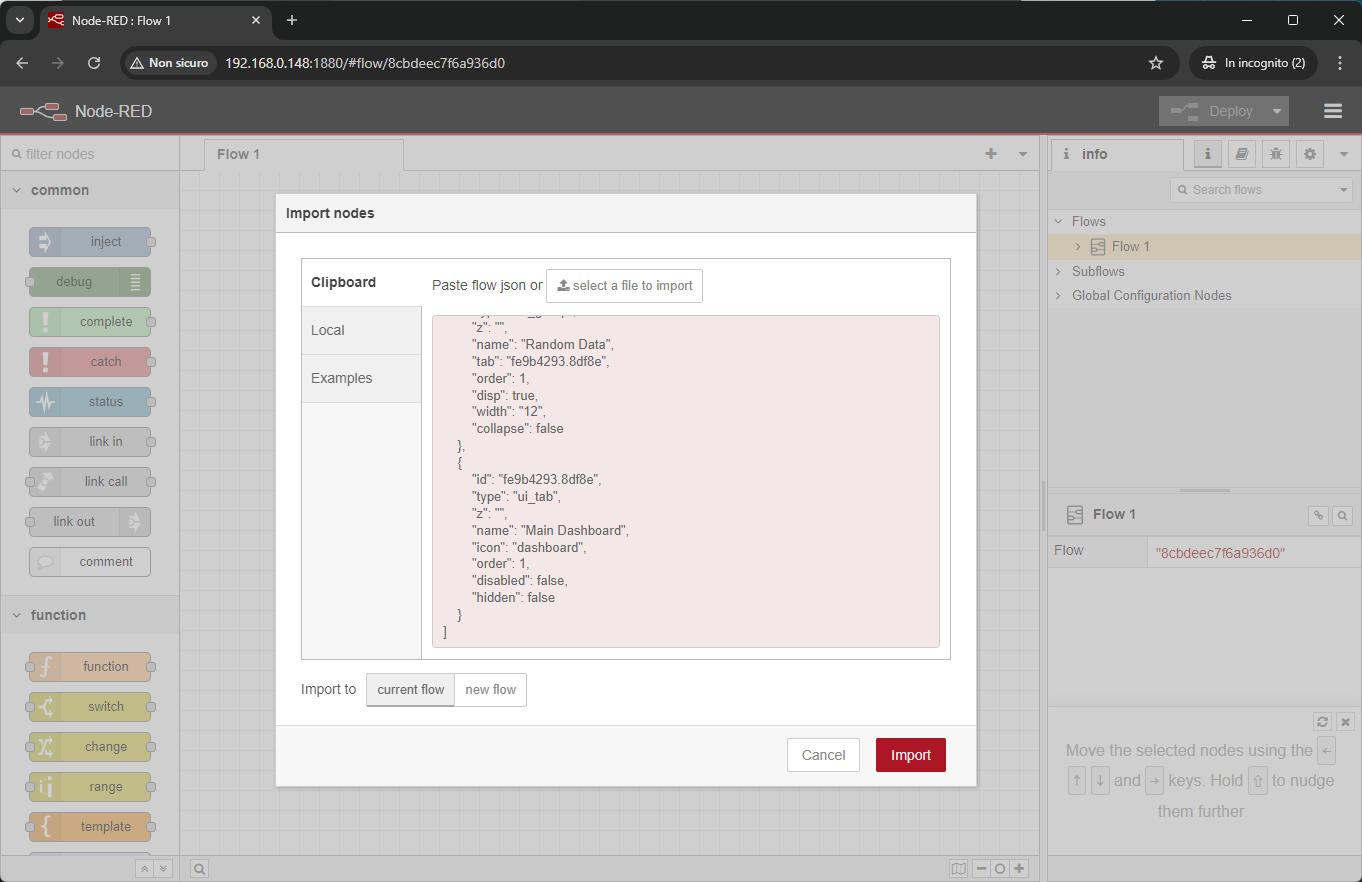

Go to the Import menu by pressing the hamburger menu icon on the top right and paste the file above inside the text window, then press the "Import" button.
Press the red "Deploy" button on the top-right of the page

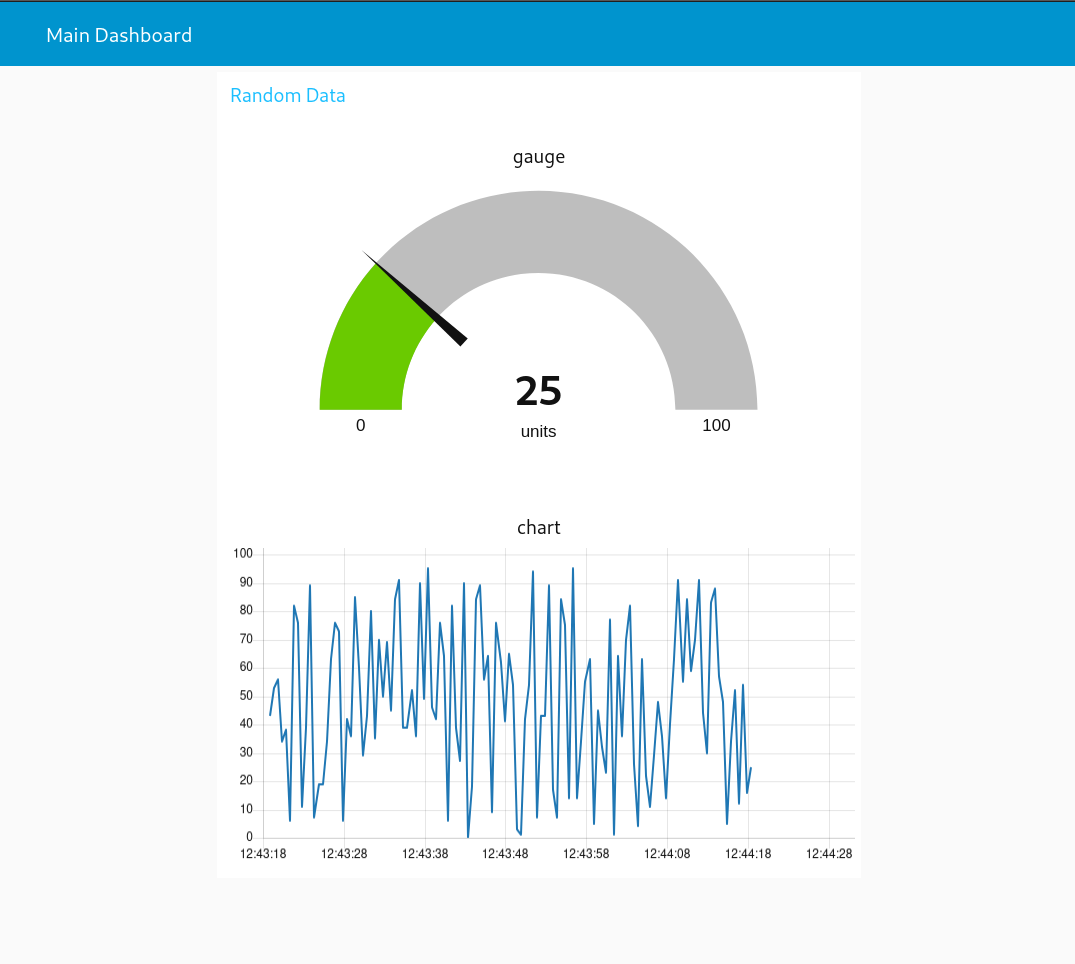

Navigate to <DEVICE_ADDRESS>:1880/ui. The output should be something like this:

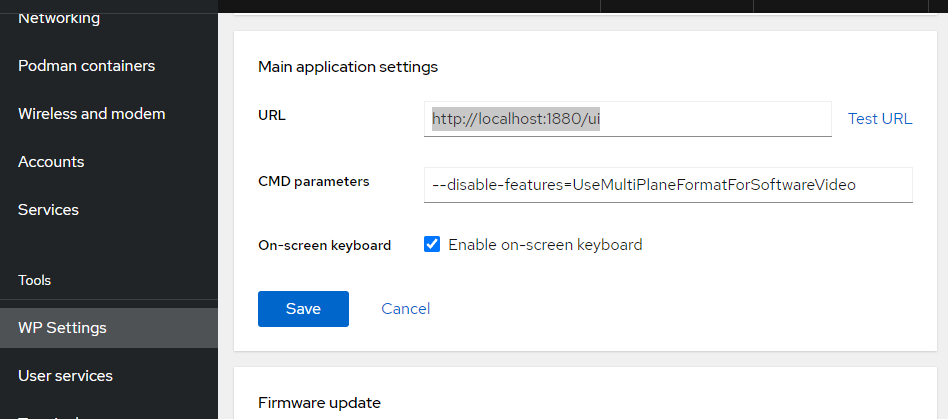

If you want the dashboard to be the main application of your WP/TC, access Cockpit and navigate to WP Settings and look for "Main application settings". Here, set the URL to http://127.0.0.1:1880/ui or http://localhost:1880/ui, and press the "Save" button. After then next reboot, the dashboard will appear in fullscreen-mode.
If you have manually created and built the node-red-custom image, and you want to use it in other WP/TC, you can export it from your current device and then load it in another, using podman.

To save the image as a tar archive:
```
podman save -o node-red-custom.tar node-red-custom
```
To import the image on another system:
```
podman load -i node-red-custom.tar
```

Conclusion 🏁

This guide provides a complete configuration for a Node-RED container on Podman with pre-installed Dashboard and Modbus modules, serial device access, and persistent configurations.
